Name: Metal Rotary Drum Screen
Brand: Zhengzhou Hengyang Industrial Co., Ltd
SKU: серия ТТС
Price: 33,850.00 USD
Availability: InStock

Домой > продукты > Stone & Sand Washing Line >

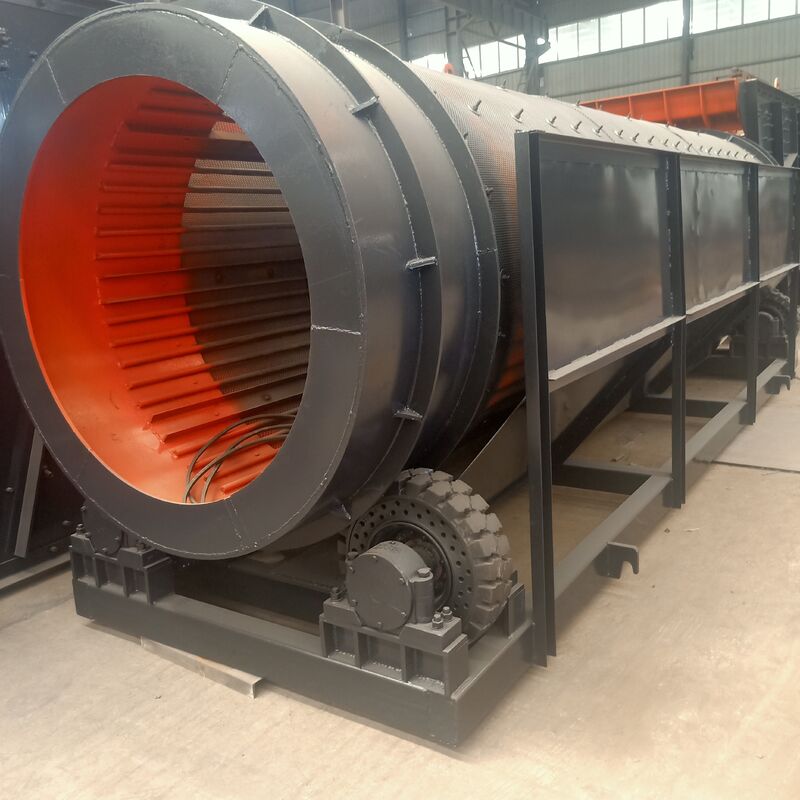

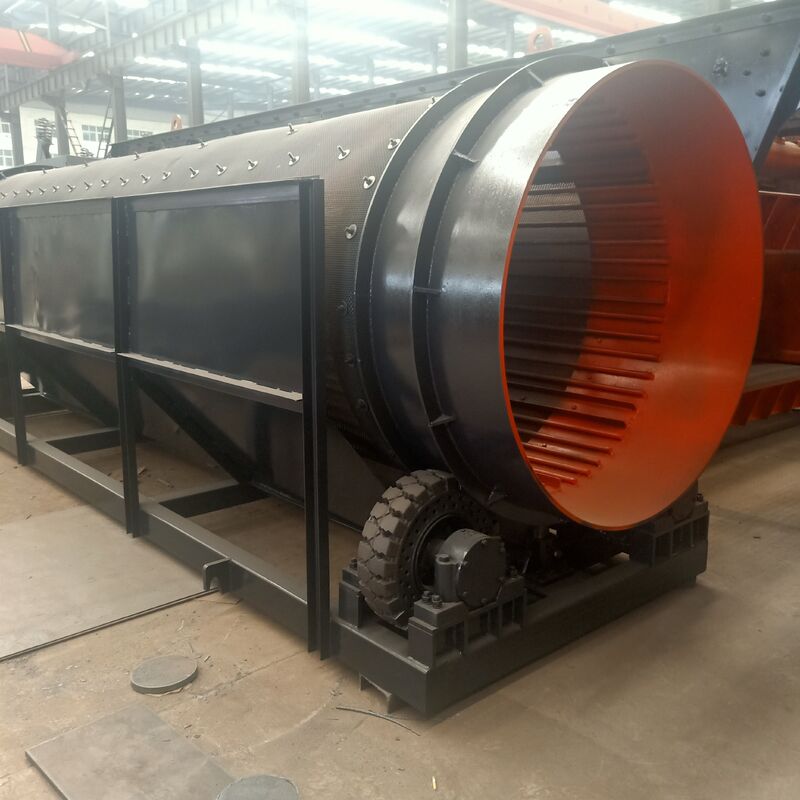

Metal Rotary Drum Screen

Rotary Drum Screen

Место происхождения:

Китай

Фирменное наименование:

hengyang

Сертификация:

ISO9001

Номер модели:

серия ТТС

Свяжитесь с нами

Запросите цитату

Подробная информация о продукции

Цвет:

Настроить

Приложение:

Омывание и разделение

Материал:

сталь

Емкость:

50-400t/h

OEM:

принимать

Условия оплаты и доставки

Количество мин заказа

Цена

12000-55700USD/set

Упаковывая детали

Обречено

Время доставки

15-20 дней

Условия оплаты

Т/Т

Поставка способности

300 комплектов/месяц

Родственные продукты

Spiral Sand Washing Machinery with 20-400 t/h Capacity 95%+ Cleaning Rate and Single or Double Spiral Options

Лучшая цена

Customize PU Spiral Sand Washing Machinery

Лучшая цена

WET PROCESSING SOLUTIONS Sand Washing Line FOR SAND & GRAVEL

Лучшая цена

Insutrial Use Rotary Screen Capacity 1-250t/h

Лучшая цена

Свяжитесь с нами

Свяжитесь сейчас

Описание продукта

Metal Rotary Drum Screen widely used for alluvial gold sieving and graded washing.It provides a simple, efficient and economical solution to upgrade a wide range of material and optimize the subsequent process steps of recovery. This method of screening helps to reduce operating and investment cost and to increase product quality, while allowing rapid and large volume processing.

Principle

• Mobile Gold Washing Machines are constructed of high quality material, designed for high performance, high production rates, lower operating costs and lower maintenance.
• Downstream process equipment can be in various forms such as centrifugal Concentrator, spirals, jigs etc.
• After the materials are fed into the drum, the materials are classified, while the bigger materials flow forward along the inclination of drum and was classified through different mesh screens gradually. Classified small materials fell into respective bunker, and are delivered into finished product stack through manpower or belt conveyor.

Metal Rotary Drum Screen 0

Technical Details

Model	Length range (m)	Screen segments	Mesh range (mm)	Power (kw)	Degree of tilt	Max Size (mm)	Drum speed (r/min)	Handling capacity (m3/h)	Reference weight (kg)
YTS600	2~4	1~3	5~35	2.2~3	7°	35	20	10	1.6
YTS800	2~4	1~3	5~40	2.2~5.5	7°	45	18	14	2.4
YTS1000	2~6	1~4	5~45	3~7.5	7°	60	16	16	4.2
YTS1200	2~8	1~4	5~50	4~11	7°	70	15	20	5.8
YTS1500	2~8	1~4	5~55	4~15	7°	80	12	32	7.2
YTS2000	2~9	1~4	5~60	5.5~18.5	7°	90	8	45	11
