Описание продукта

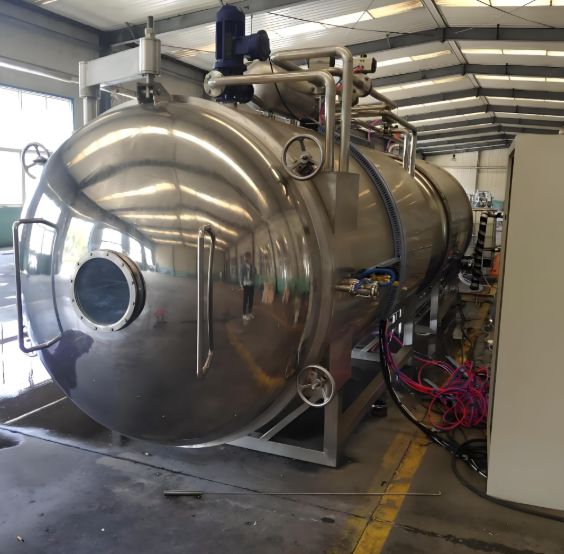

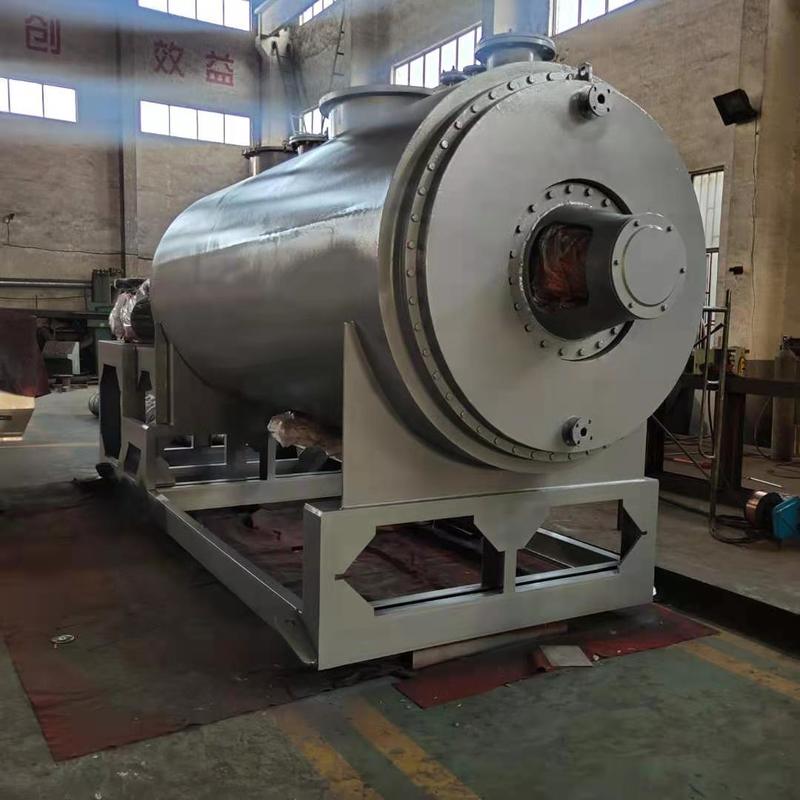

Round Static Vacuum Dryer

Product Specifications

Attribute	Value
Name	Round Static Vacuum Dryer
Material	SS Steel
OEM	Accept
Conditions	New

Product Description

Hengyang Industry fabricates professional round static vacuum dryers in China. It can dry materials with lower temperature and consume less electricity.

Introduction and Working Principle

Round static vacuum dryer is designed to process raw materials under vacuum state for heating and drying. Suitable for drying heat-sensitive raw materials that can decompose, polymerize, or deteriorate under high temperature in pharmaceutical, chemical, food, and electronic industries.

Under vacuum conditions, the boiling point of solution materials decreases and evaporation efficiency increases, enhancing heat and mass exchange.

Key Features

The boiling point of raw materials decreases under vacuum, increasing heat pushing force of evaporator and saving conducting area for heat radiation
Heating source options: low pressure steam, surplus heat steam, water, or oil (special requirements available)
Reduced heat loss of evaporator
Ideal for heat-sensitive materials prone to dissolving, agglomerating, polymerizing, or denaturing
Disinfection treatment possible before drying to prevent impurity mixing
Static dryer preserves material shape and structure

Important Considerations

1. Select appropriate vacuum dryer based on material properties, moisture content, temperature requirements, vacuum level, drying capacity, and time. Four heating methods available: steam, hot water, heat conduction oil, and electricity.

2. Drying layers can be increased to enhance product output.

3. Choose auxiliary parts from our recommended vacuum drying system components.

4. Custom design, manufacture, and installation available for special requirements.

5. Vacuum pump accelerates drying by removing air and humidity.

6. Condenser enables solvent recovery (water solvent may eliminate need for condenser).

RVD Series Specifications

Specification Model	RVD-60	RVD-80	RVD-100	RVD-140
Inner size of drying chamber	φ 600×976mm	φ 800×1247mm	φ 1000×1527mm	φ 1400×2054mm
Outer size of drying chamber	1135×810×1020mm	1700×1045×1335mm	1693×1190×1500mm	2386×1657×1920mm
Layers of baking shelf	4 layers	4 layers	6 layers	8 layers
Distance between layers	81mm	82mm	102mm	102mm
Size of baking disk	310×600×45 mm	520×410×45mm	460×640×45mm	460×640×45mm
Quantity of baking disk	4pcs	8pcs	12pcs	32pcs
Permitted pressure inside pipe	≤ 0.784Mpa	≤ 0.784Mpa	≤ 0.784Mpa	≤ 0.784Mpa
Temperature inside chamber	≤150℃	≤150℃	≤150℃	≤150℃
Vacuum level without load	0.09-0.096Mpa	0.09-0.096Mpa	0.09-0.096Mpa	0.09-0.096Mpa
With condenser: vacuum pump model/power	2X-15A, 2Kw	2X-30A, 3Kw	2X-30A, 3Kw	2X-70A, 5.5Kw
Without condenser: vacuum pump model/power	SK-1.5, 4Kw	SK-3, 5.5Kw	SK-3, 5.5Kw	SK-6, 11Kw
Weight of drying chamber	250kg	600kg	800kg	1200kg
